radio menu Two Way Radio KG-816



  CLICK HERE CLOSE LIST radio list

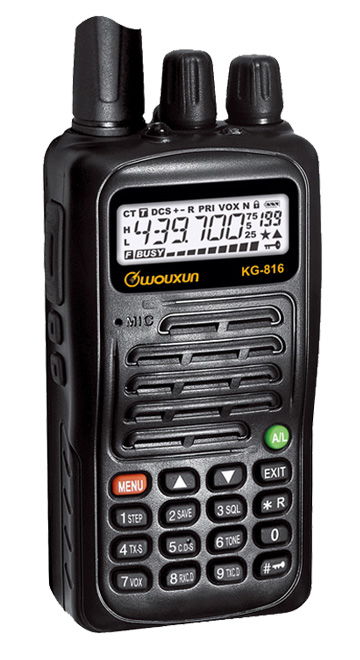

kg-816



main function Wire-clone Function
main function Programmable by Computer
main function IP55 Waterproof
main function Busy Channel Lockout
main function Keypad Lock (Auto/Manual)



MAIN FUNCTIONS
main function Begin/End Transmitting Beep Prompt
main function ANI (Caller ID)
main function SOS Function
main function 1750Hz Burst Tone
main function Inspection, Monitor, Stun, Kill and Emergency Alarm
main function 105 Groups DCS/50 Groups CTCSS
main function Voice Guide 8. Distant Alarm
main function Call Ring
main function VOX Transmission (Level Adjustable)
main function Digital FM Radio with Frequency Display
main function Wide/Narrow Bandwidth Selection (25KHz/12.5KHz)
main function Reverse Frequency Function
main function Multi Scan Mode (TO/CO/SE)
main function All Calls, Group Calls and Selective Calls
main function Multi Step Frequency: 2.5K(Optional )/5K/6.25K/10K/12.5K/25K/50K/100K
main function Multi Displaying Mode (Frequency/Channel/Channel name)
main function Speedy Working Mode Shift (MENU+TDR)
main function Channel Name Edit and Display
main function Battery Capacity Prompt
main function TOT (Time-out Timer)
order radios


TECHNICAL SPECIFICATION
   Frequency Ranges    VHF:66-88MHz / 136-174MHz / 245-246MHz
   UHF:400-470MHz / 400-480MHz  / 420-520MHz
   Channel Spacing Wide:25KHz / Narrow:12.5KHz
   Output Power VHF:5W/1W   UHF:4W/1W
   Memory Channels 199
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation ≤-60dB
   Waterproof IP55

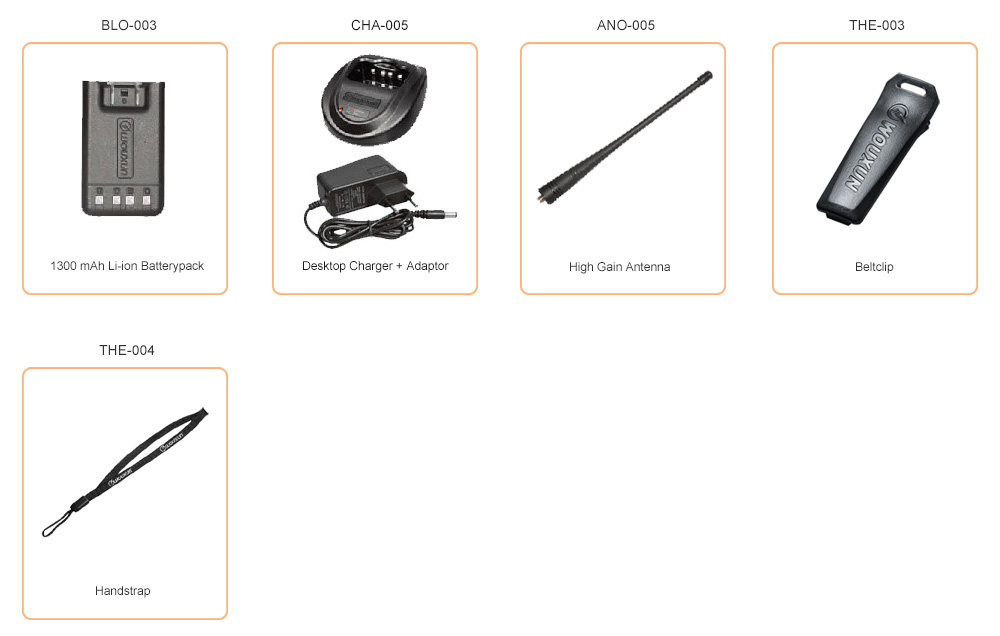

STANDARD ACCESSORY
816 accessory
