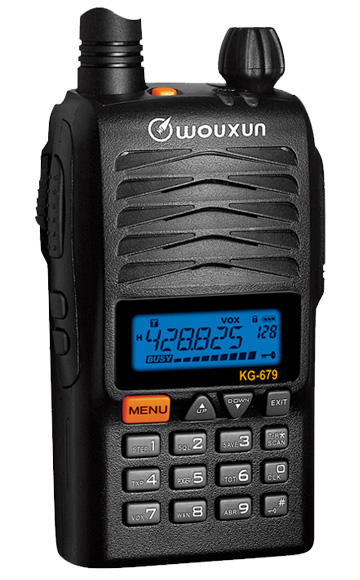

radio menu Two Way Radio KG-679E



  CLICK HERE CLOSE LIST radio list


kg-679e





MAIN FUNCTIONS
main function DTMF encoding and decoding
main function High/Low Power selection(VHF:5W/1W UHF: 4W/1W)
main function 105 groups DCS/ 50 groups CTCSS
main function Wide /narrow bandwidth selection (25KHz / 12.5KHz)
main function ANI(Caller ID)
main function TOT(Time-out Timer)
main function VOX Transmission(Level Adjustable)
main function Multi scan mode ( TO / CO / SE )
main function Busy channel lockout
main function Wire-clone function
main function All Calls,Group Calls and Selective Calls
main function FM Radio
main function IP55 waterproof
order radios


TECHNICAL SPECIFICATION
   Frequency Ranges    VHF:66-88MHz / 136-174MHz / 245-246MHz
   UHF:400-470MHz / 450-520MHz
   Channel Spacing Wide:25KHz / Narrow:12.5KHz
   Output Power VHF:5W/1W   UHF:4W/1W
   Memory Channels 128
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation ≤-60dB
   Waterproof IP55

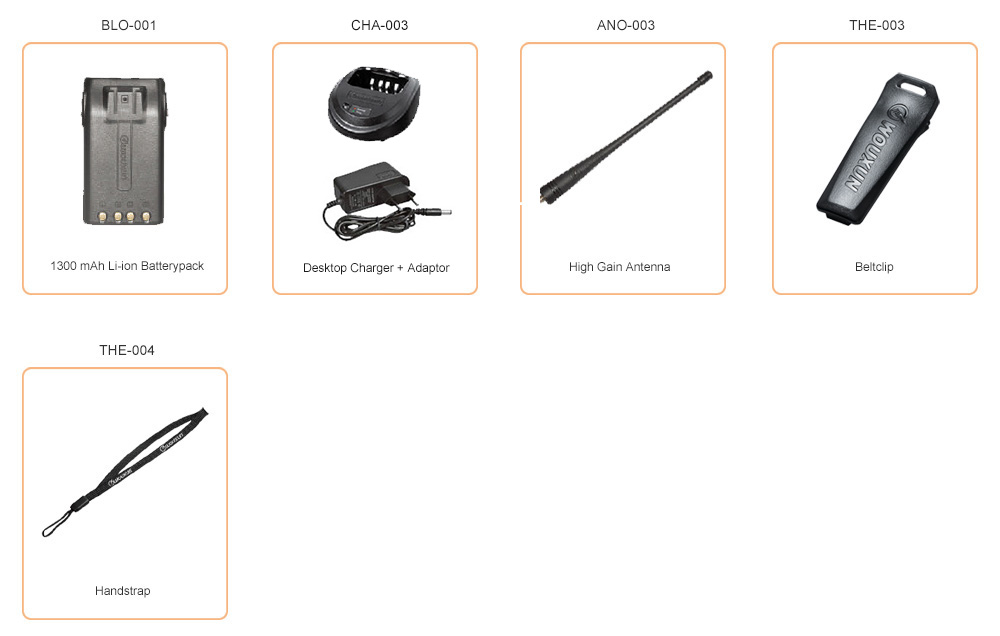

STANDARD ACCESSORY
679 accessory
