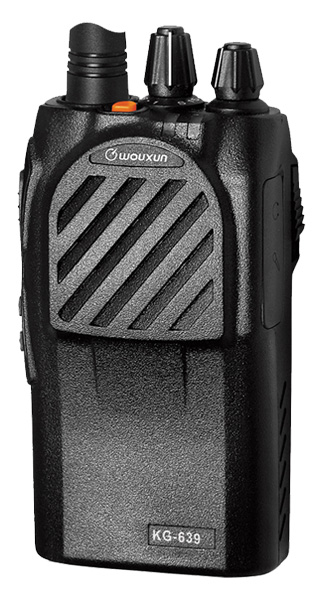

radio menu Small and Smart Two Way Radio KG-639E



  CLICK HERE CLOSE LIST radio list


kg-639e





MAIN FUNCTIONS
main function DTMF encoding and decoding
main function All calls, group calls and selective calls
main function 1750Hz burst tone
main function Inspection, monitor, stun, kill and emergency alarm
main function 105 groups DCS/ 50 groups CTCSS
main function distant alarm / SOS function
main function Voice prompt
main function Wide /narrow bandwidth selection
main function Multi scan mode
main function Busy channel lockout
main function Wire-clone function
main function Bright flashlight illumination function
main function Program by computer
main function IP55 waterproof
order radios


TECHNICAL SPECIFICATION

   Frequency Ranges

   VHF: 66-88MHz / 136-174MHz / 216-280MHz
   UHF:400-470MHz / 400-480MHz / 420-520MHz
               450-520MHz

   Channel Spacing Wide:25KHz / Narrow:12.5KHz
   Output Power VHF:5W/1W   UHF:4W/1W
   Memory Channels 16
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation ≤-60dB
   Waterproof IP55


STANDARD ACCESSORY
radio accessory
