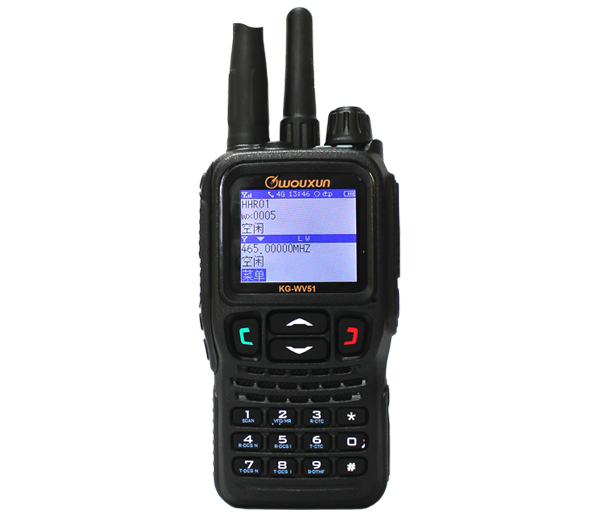

Cross Mode Repeat , Public Network Radio KG-WV51

kg-wv51

Product Resource And Related Webpage Link

... Send Radio Order Message



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Cross-Mode Repeat , Simcard Radio to Analogue Radio
  • Compatible With 4G / 3G / 2G Public Network
  • Large Color Screen
  • Public Network Push to Talk And Analogue Radio
  • RX On The Same / Different Bands of A&B Areas Simultaneously
  • Duplex Work Mode , One Band TX , Another Bands RX
  • DTMF Encode and Decode
  • QT/DQT Encoding and Decoding
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Single-Tone Pulse Frequency : 2100Hz / 1750Hz / 1450Hz / 1000Hz
  • Multi Definition for Sidekeys
  • Selective Calls, Group Calls, All Calls
  • Lamp Function
  • GPS Location
  • Phone Call Function

TECHNICAL  SPECIFICATION
General
   Audio Power ≤500mW
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Weight 260 G
   Size 62 x 34 x 123 MM

Public Network
   Work Band 4G LTE , 3G , 2G
   Max TX Power 23~25dBm @AII Up Bits
   RX Sensitivity -106dBm

Analogue
  Frequency Range

   Suitable For Different Countries or Areas
   400-470MHz (RX/TX)

   Setp 5 / 6.25 / 12.5 / 25 / 50 KHz
   Memory Channels 16
   Mode F2D / F3E
   Antenna Impedance 50Ω
Analogue Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF 2.5W (12dB SINAD)


Analogue Transmitter
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF : 4W / 1W

STANDARD  ACCESSORY
BLO-014   CHA-015   CHA-015   ANO-019
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2500mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

OPTIONAL  ACCESSORY
HEO-001   HEO-002   ELO-006   PCO-009
headset ...

headset ...

eliminator ...

usb cable ...
Headset   Air Conduit Earphone   Eliminator   USB Programming Cable

CHA-032   CCO-002   SMO-002   CHA-031
charger ...

car charger ...

speaker ...

charging cable ...
Six-way Charger   Car Charger   Sperker   USB Charging Cable
