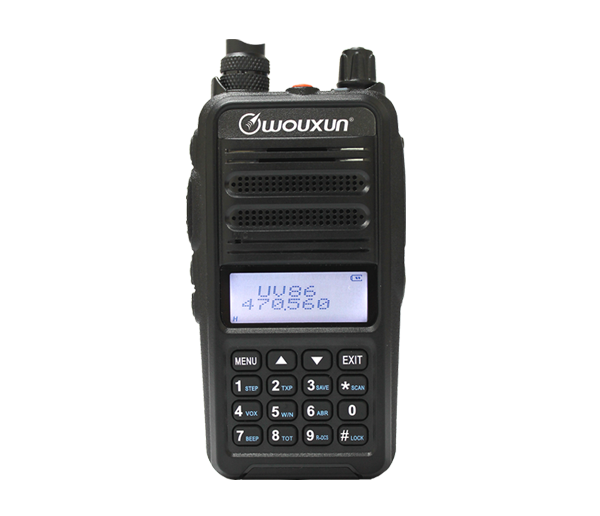

Voice Scrambler , UV Dual Bands , Portable Two Way Radio KG-UV86

wouxun kg-uv86

Product Resource And Related Webpage Link

... Send Radio Order Message



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Dual Band , Dual Reception , Dual Display
  • Working Mode: U-V,V-U,V-V,U-U Can be Set Freely
  • CTCSS / DCS Scan , Digital 107Groups , Analog 50 Groups
  • VHF For TX While UHF For RX or UHF for TX While VHF For RX
  • Digital FM Radio (76-108MHz)
  • VOX Transmission
  • Memory Channels 199
  • Non-Standard CTCSS / DCS
  • Multi Definition For Sidekeys
  • Bandwidth Selection (25KHz / 12.5KHz)
  • Channel Name Edit And Display
  • Multi-scanning And Offset Function
  • Bright Flashlight Illumination
  • 8 Groups of Scrambler
  • 5-Tones

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range Suitable For Different Countries or Areas
   Frequency Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

STANDARD  ACCESSORY
BLO-028   CHA-029   ANO-040   OTH-003
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 1700mAh   Charger   Antenna   Belt Clip

OTH-005
hand strap ...

Hand Strap
