radio menu Repeater Station KG-DR3000



  CLICK HERE CLOSE LIST radio list

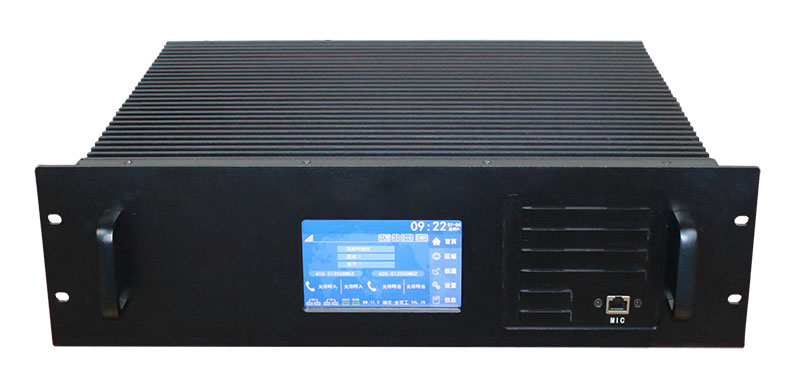

KG-DR3000
Send Repeater Order Message

TECHNICAL  SPECIFICATION
General
   Frequency Range 400-470 MHz
   Channel Spacing 12.5 / 25 KHz
   Frequency Stability ±0.5 PPM
   Operating Voltage 110 / 220 VAC(±15%) , 13.8 VDC(±15%)
   Operating Temperature  -30℃~+60℃
Receiver
   Reference Sensitivity (Analog) 0.35µV / -116dBm (12dB SINAD)
0.22µV / -120dBm (Type)
   Reference Sensitivity (Digital) 0.35µV / -116dBm
0.22µV / -120dBm
   Adjacent Channel Selectivity 60dB 12.5KHz
75dB 20 / 25KHz
   Inter Modulation 75dB
   Spurious Response Rejection 70dB
   Rated Audio Output 0.5W
   FM Noise 45dB 25KHz , 40dB 12.5KHz
   Rated Audio Distortion ≤3%

Transmitter
   Antenna Impedance 50Ω
   RF Power Output 25W
   Frequency Modulation 16K@F3E / 11K@F3E (Analog) , 4FSK (Digital)
   Modulation Limiting ±2.5Khz 12.5KHz , ±5KHz 25KHz
   Radiated Spurious Emission -36dBm < 1GHz , -30dBm > 1GHz
   FM Noise 45dB 25KHz , 40dB 12.5KHz
   Modulation Distortion ≤3%
