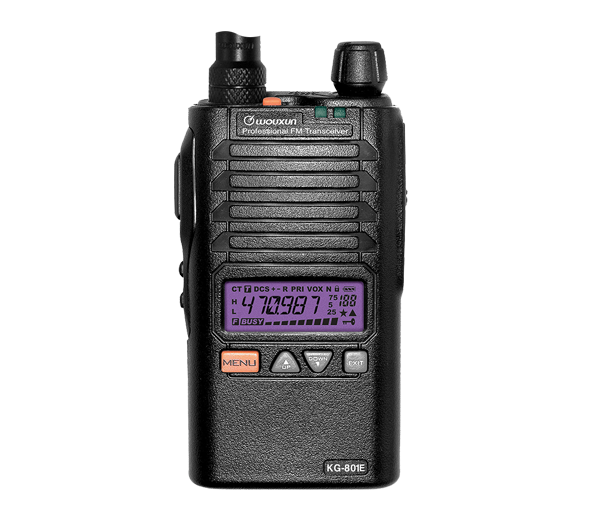

Two Way Radio KG-801E

wouxun kg-801e

Product Resource And Related Webpage Link

... Send Radio Order Message



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • 5 Kinds of Backlights
  • DTMF Encoding And Decoding
  • 105 Groups DCS , 50 Groups CTCSS
  • Wide / Narrow Bandwidth Selection (12.5 / 25KHz)
  • TOT(Time-out Timer)
  • VOX Transmission (Level Adjustable)
  • Multi Scan Mode ( TO / CO / SE )
  • Busy Channel Lockout
  • Wire-clone Function
  • All Calls , Group Calls and Selective Calls
  • FM Radio
  • PTT ID
  • ANI (Caller ID)
  • Setting Power on Message

TECHNICAL  SPECIFICATION
   Frequency Ranges PMR446MHz
   Output Power 0.5W
   Memory Channels 128
   Voltage 7.4 VDC
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Waterproof IP55
   Spurious Radiation ≤-60dB
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5PPM
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output Power ≥500mW


STANDARD  ACCESSORY
BLO-004   CHA-003   ANO-003   OTH-003
battery ...

charger ...

antenna ...

belt clip ...
Li-ion Battery Pack , 1700mAh   Desktop Charger + Adaptor   Antenna   Belt Clip

OTH-005
hand strap ...

Hand Strap

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
