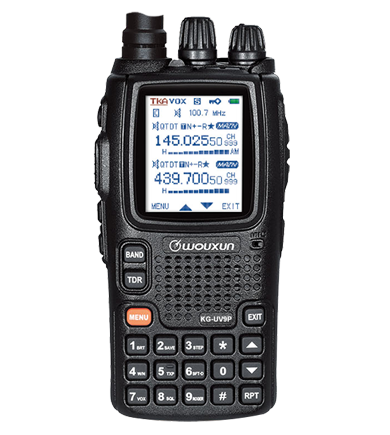

| 7W Power Output , Cross Band Repeater KG-UV9P |
| |
| MAIN FUNCTION |
- Cross Band Repeater
- Large Color Screen
- Completely turn off display screen background light
- Completely trun off flickering indicator light
- Dual Receiving
- Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
- RX on the same/different bands of A&B areas simultaneously
- Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
- Channel Groups Scanning
- Memory Channels 999
- QT/DQT Encoding/Decoding,QT/DQT Scan
- Non-Standard CTCSS can be set arbitrarily
- VOX and SOS function
- Reverse Frequency
- mplitude-frequency PTT settings
- ncoming Message Display Caller ID display
- DTMF Encoding&Decoding
- All Calls,Group Calls And Selective Calls
- PriorRemote Alarmity Scan Function
- Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- English Channel Name Edit
- Bright Flashlight illumination
- Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
- Stopwatch
- Multi Definition for Sidekeys
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable for Different Countries
TX , FM
136-174MHZ , 400-512MHZ
RX , FM
76-108MHZ(AM)
108-136MHZ(Air Ground)
136-180MHZ , 230-250MHZ(FM)
350-400MHZ , 400-512MHZ(FM)
700-985MHZ(FM) |
| Step |
2.5 / 5.0 / 6.25 / 10 / 12.5 KHz
25 / 50 / 100 KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50 Ω |
| Weight |
490 G |
| Size |
130 x 57 x 35 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
08-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF , H:8W , M:5W , L:1W
VHF H:10W , M:7W , L:1W |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-008 |
|
CHA-011 |
|
|
|
| Battery , 2000mAh |
|
Charger |
| |
|
|
| CHA-011 |
|
OTH-005 |
|
|
|
| Power Supply Adapter |
|
Hand Strap |
| |
|
|
| ANO-014 |
|
OTH-001 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-012 |
|
CHA-013 |
|
|
|
| Battery , 3200mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-004 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-038 |
|
ANO-006 |
|
|
|
| Antenna |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
|
| |
