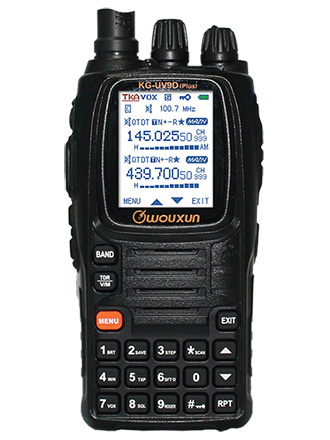

Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV9D(Plus)

KG-UV9D Plus is a multi-function amateur two way radio
air bands receive and cross band repeat is the highlight
feature. thanks to the advanced audio processing and
anti-interference technologies, the KG-UV9D Plus
delivers clear communication even in noisy environments.

Dual Bands Transmission , Seven Bands Reception
Two Way Radio KG-UV9D(Plus)

MAIN FUNCTION

Seven Bands Receive
Thanks to the advanced frequency modulation
technologies, WOUXUN develop a first radio can
support seven bands reception, which are
76-108MHz(FM) ,108-136MHz(air ground) ,
136-180MHz(FM) ,230-250MHz(FM) ,
350-400MHz(FM) ,400-512MHz(FM) ,
700-985MHz(FM)

Cross Band Repeater
KG-UV9D Plus is a advanced two way radio which
can repeat VHF to UHF or UHF to VHF. It can be
used as a small movable repeater, very helpful
for extend the talk range. KG-UV9D Plus
repeater function are widely used in building,
restaurant, taxi, factory ect

Anti-Interference Technologies
The advanced anti-interference technologies are used
in KG-UV9D Plus. The superheterodyne receiver
makes KG-UV9D Plus performance great noise
reduction. However, the High sensitivity also
help KG-UV9D Plus receive the week signal

Mplitude-Frequency PTT Settings
There are two PTT keys designed in KG-UV9D Plus.
One control Main Frequency, another control sub
frequency. This advanced design make user more
convent communicate in different area.

Memory Channels 999
There are 999 channels in KG-UV9D Plus. The large
channel memory makes user can store more channel
list. It is a advanced channel storage in analogue
two way radio.

Duplex Work on A&B Areas
KG-UV9D Plus support duplex work. When you transmit
in A band, it can receive in B band at same time.
Very helpful in duplex communication.

Cross Band Repeater
Large Color Screen
Completely turn off display screen background light
Completely trun off flickering indicator light
Dual Receiving
Seven Bands Reception and Dual Bands Transmission
Multi Scanning Mode and Channel Groups Scanning
Duplex Work on A&B Areas(TX on one area while RX on the other area simultaneously)
RX on the same/different bands of A&B areas simultaneously
Simultaneously Scanning on Twin Band
Memory Channels 999
QT/DQT Encoding/Decoding,QT/DQT Scan
Non-Standard CTCSS can be set arbitrarily
VOX and SOS function
Multi Definition for Sidekeys
Reverse Frequency
Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
mplitude-frequency PTT settings
ncoming Message Display Caller ID display
DTMF Encoding&Decoding
All Calls,Group Calls And Selective Calls
PriorRemote Alarmity Scan Function
Voice Guide:Chinese/English
Chinese/English Screen Display
English Channel Name Edit
Bright Flashlight illumination
Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
Stopwatch
Superheterodyne Receiver Type

TECHNICAL SPECIFICATION

Intergration
Frequency Range	Suitable for Different Countries TX , FM 136-174MHZ , 400-512MHZ RX , FM 76-108MHZ(AM) 108-136MHZ(Air Ground) 136-180MHZ , 230-250MHZ(FM) 350-400MHZ , 400-512MHZ(FM) 700-985MHZ(FM)
Step	2.5K/5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number	999
Work Mode	F2D/F3E
Operating Temperature	-20℃～+40℃
Voltage	7.4 VDC
Antenna Impedance	50 Ω
Weight	490 G
Size	130 x 57 x 35 MM

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	1~-3dB(0.3~3KHz)	1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	≤500mW
Sensitivity	08-136MHz(AM) -106.0dbm SN 13dB 136-180MHz -119.0dbm SINAD 13dB 230-250MHz -116.0dbm SINAD 13dB 350-400MHz -119.0dbm SINAD 13dB 400-512MHz -119.0dbm SINAD 13dB 700-986MHz -96.0dbm SINAD 12dB

Transmitter
Adjacent Channel Power	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Max Frequency Deviation	±5KHz	±2.5KHz
Audio Response	1~-3dB(0.3~3KHz)	1~-3dB(0.3~3KHz)
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Output Power	UHF H:5W , M:2W , L:1W VHF H:4W , M:2W , L:1W

STANDARD ACCESSORY

BLO-008		CHA-011

Battery , 2000mAh		Charger

CHA-011		OTH-005

Power Supply Adapter		Hand Strap

ANO-014		OTH-001

Antenna		Belt Clip

OPTIONAL ACCESSORY

BLO-012		CHA-013

Battery , 3200mAh		Six-way Charger

LCO-003		PCO-009

Leather Case		USB Cable

HEO-001		HEO-002

Headset		Air Conduit Earphone

HEO-003		HEO-005

Headset		Air Conduit Earphone

SMO-001		SMO-002

Speaker		Speaker

CCO-001		ELO-004

Car Charger		Eliminator

ANO-012		AAO-002

Antenna		BNC Antenna Adaptor

AAO-001

SL16 Antenna Adaptor
