Shortcut Key Front Panel , Quad Bands Transmission

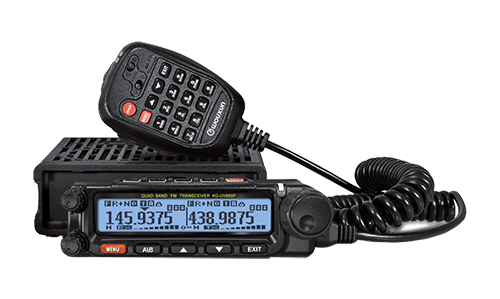

Car Mobile Radio KG-UV980P |
| |
| MAIN FUNCTION |
- Dual Frequency Display
- Dual Independant Operation System
- Eight Bands for Receiving
- Four Bands (Including SW) for Transmitting
- Twin Band / Same Band Simultaneous Reception
- 999 Memory Channels
- Front Panel And Radio Body Flexible For Separation
- QT/DOT Encoding And Decoding
- QT/DOT Scanning
- Non-standard CTCSS/DCS Setting Freely
- Same Band Repeat on Two Combined Radios
- Dual Track And Multi-way Loudspeakers
- Hand Microphone DTMF With Loudspeakers
- Caller ID Display
- DTMF Encoding And Decoding
- Multiple Scanning Ways
- Group Calls, All Calls And Selective Calls
- 8 Groups of Scrambler
- Priority Channel Scanning
- APO Power Management
- Wide / Narrow Bandwidth Selectable
- Chinese or English Voice Guide
- Automatic Temperature Detection
- Stun / Kill Function
- Single Audio Pulse Frequency
- Multiple Back Light Color Selectable
- Scan Channel Adding / Deleting
- Grouping Channel Scanning
- Multiple Setting for Cooling Fan
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable for Different Countries
TX , FM
26-29.995MHz / 50-53.995MHz / 136-174.995 / 400-479.995MHz
RX , FM
26-29.995MHz / 50-54.995MHz /
65-108MHz 108-180.995MHz /
320-349.995 / 400-479.995MHz / 700-987.995MHz
RX , AM
108MHz -136MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+60℃ |
| Voltage |
13.8VDC±15% |
| Antenna Impedance |
50Ω |
| Weight |
1438 g |
| Size |
140 x 44 x 207 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
Transceiver≤3w ,
Hand Microphone≤1w |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Signal to Noise Ratio |
≥40dB |
≥36dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Output Power |
VHF(5W/10W/25W/50W) UHF(5W/10W/25W/40W) |
|
| |
| STANDARD ACCESSORY |
| |
| MMO-003 |
|
SAO-001 |
|
|
|
| Hand Microphone |
|
Inclined Switchboard |
| |
|
|
| SAO-002 |
|
MBO-001 |
|
|
|
| Flat Switchboard |
|
Mounting Bracket |
| |
|
|
| RBO-001 |
|
PWO-002 |
|
|
|
| Front Panel Bracket |
|
Mobile Power Cord |
| |
|
|
| SCO-002 |
|
SSO-001 |
|
|
|
| Extension Cable |
|
Screw Sets |
| |
|
|
| FUO-001 |
|
|
|
|
|
| Fuse , 15A 32V |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| SPO-002 |
|
PCO-003 |
|
|
|
| Switching Power , 30A |
|
USB Cable |
| |
|
|
| ANO-035 |
|
ANO-016 |
|
|
|
| Mobile Car Antenna |
|
Magnetic Mount |
| |
|
|
|
| |
