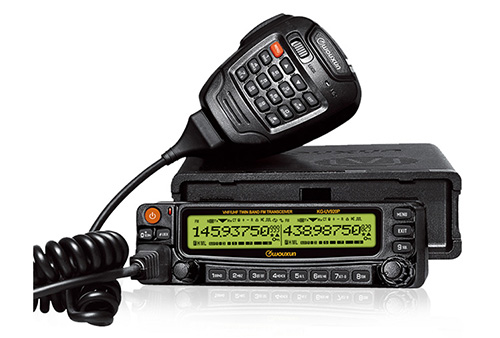

| Dual System , Dual Frequency , Car Radio KG-UV920P |
| |
| MAIN FUNCTION |
- 999memory channels
- Unidirectional or Two Way Cross Band Repeater
- Dual Frequency Display
- Dual Independant Operation System
- Remote Control Function
- Voice scrambler, DTMF Encode&Decode
- Front panel and radio body flexible for separation
- CTCSS/DCS encoding and decoding
- Non-standard CTCSS/DCS setting freely
- Same -band repeat on two combined radios
- Dual track and multi-way loudspeakers
- Hand microphone DTMF with loudspeakers
- Caller ID display
- Multiple back light color select able
- Scan channel adding /deleting
- Grouping channel scanning
- Group calls, all calls and selective calls
- Priority channel scanning
- APO power management
- Wide / narrow bandwidth select able
- Voice guide
- Automatic temperature detection
- Stun/kill function
- Single audio pulse frequency
- Multiple scanning ways
- Remote control setting
- Multiple setting for cooling fan
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable for Different Countries
RX and TX
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 216-280MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-146MHz & 222-225MHz
144-148MHz & 420-520MHz
RX
FM , 65MHz-108MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+60℃ |
| Voltage |
13.8VDC±15% |
| Antenna Impedance |
50Ω |
| Weight |
1438 g |
| Size |
140 x 44 x 207 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
transceiver≤3w ,
hand microphone≤1w |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Signal to Noise Ratio |
≥40dB |
≥36dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
|
| |
| STANDARD ACCESSORY |
| |
| MMO-001 |
|
SAO-001 |
|
|
|
| Hand Microphone |
|
Inclined Switchboard |
| |
|
|
| SAO-002 |
|
MBO-001 |
|
|
|
| Flat Switchboard |
|
Mounting Bracket |
| |
|
|
| RBO-001 |
|
PWO-002 |
|
|
|
| Front Panel Bracket |
|
Mobile Power Cord |
| |
|
|
| SCO-002 |
|
SSO-001 |
|
|
|
| Extension Cable |
|
Screw Sets |
| |
|
|
| FUO-001 |
|
|
|
|
|
| Fuse , 15A 32V |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| SPO-002 |
|
PCO-003 |
|
|
|
| Switching Power , 30A |
|
USB Cable |
| |
|
|
| ANO-015 |
|
ANO-016 |
|
|
|
| Mobile Antenna |
|
Magnetic Mount |
| |
|
|
|
| |
