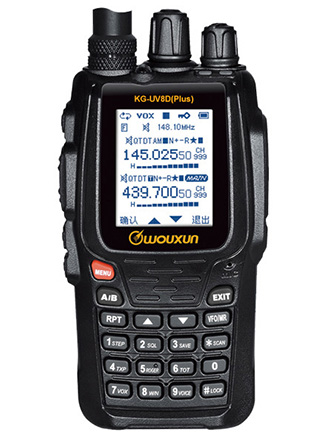

| Dual Bands , Voice Encryption KG-UV8D(Plus) |
| |
| MAIN FUNCTION |
- Dulex Repeater(VHF to UHFor UHF to VHF)
- Duplex Work Mode and Dual Receiving
- Cross Band Repeater
- Voice Encryption and Non-Standard CTCSS/DCS
- Voice compander
- Backlight Intensity Can be Adjusted
- power-on message editable
- Memory Channels 999
- QT/DQT Encoding/Decoding,QT/DQT Scan
- VOX and SOS Funcion
- Multi Definition for Sidekeys
- Incoming Message Display Caller ID display
- DTMF Encoding&Decoding
- All Calls,Group Calls And Selective Calls
- Dual Display ,Two Independent Operation System
- Large Color Screen
- Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- Bright Flashlight illumination
- Reverse Frequency
- Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
- Stopwatch
- Remote Alarm
- Priority Scan Function
|
| |
TECHNICAL SPECIFICATION
| Frequency Range |
Suitable for Different Countries
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-148MHz & 420-520MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4VDC |
| Antenna Impedance |
50Ω |
| Weight |
490 g |
| Size |
125 x 62 x 33 MM |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5.0KHz |
±2.5KHz |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF H:4W , L:1W
VHF H:5W , L:1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Power |
≤500mW |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-006 |
|
CHA-009 |
|
|
|
| Battery , 1700mAh |
|
Charger |
| |
|
|
| ANO-011 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-007 |
|
HEO-006 |
|
|
|
| Battery , 2600mAh |
|
Air Conduit Headset |
| |
|
|
| LCO-002 |
|
PCO-001 |
|
|
|
| Rubber Case |
|
USB Cable |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-009 |
|
CHA-010 |
|
|
|
| Battery , 2600mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-003 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-011 |
|
AAO-002 |
|
|
|
| Antenna |
|
BNC Antenna Adaptor |
| |
|
|
| AAO-001 |
|
|
|
|
|
| SL16 Antenna Adaptor |
|
|
| |
|
|
|
| |
