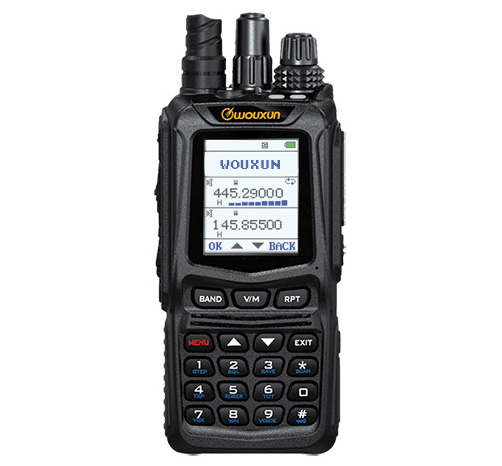

| UV Bands Two Way Radio KG-M98 |
| |
| RADIO FUNCTION |
- Dulex Repeater(VHF to UHFor UHF to VHF)
- Duplex Work Mode and Dual Receiving
- Cross Band Repeater
- Voice Encryption and Non-Standard CTCSS/DCS
- Voice compander
- Backlight Intensity Can be Adjusted
- power-on message editable
- Memory Channels 999
- QT/DQT Encoding/Decoding,QT/DQT Scan
- VOX and SOS Funcion
- Multi Definition for Sidekeys
- Incoming Message Display Caller ID display
- DTMF Encoding&Decoding
- All Calls,Group Calls And Selective Calls
- Dual Display ,Two Independent Operation System
- Large Color Screen
- Wide / Narrow Bandwidth Selection (12.5 / 25.0KHz)
- Voice Guide:Chinese/English
- Chinese/English Screen Display
- Bright Flashlight illumination
- Reverse Frequency
- Single-Tone Pulse : 2100 / 1750 / 1450 / 1000 Hz
- Stopwatch
- Remote Alarm
- Priority Scan Function
|
| |
TECHNICAL SPECIFICATION
| Frequency Range |
Suitable for Different Countries
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-148MHz & 420-520MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50 Ω |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5.0KHz |
±2.5KHz |
| Frequency Stability |
±2.5 PPM |
| Audio Distortion |
≤5% |
| Output Power |
UHF H:4W , L:1W
VHF H:5W , L:1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Power |
≤500mW |
| Audio Distortion |
≤5% |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
| |
| STANDARD ACCESSORY |
| BLO-015 |
|
CHA-014 |
|
|
|
| Battery , 2500mAh |
|
Charger |
| |
|
|
| CHA-014 |
|
ANO-011 |
|
|
|
| Power Supply Adaptor |
|
Antenna |
| |
|
|
| OTH-005 |
|
OTH-002 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
