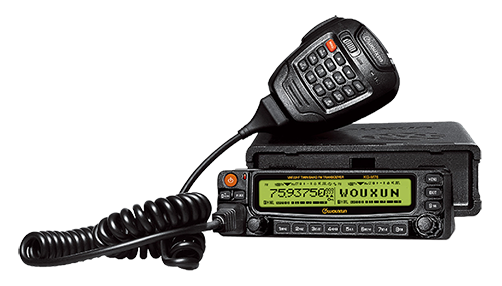

| Mobile Radio KG-M76 |
| |
| RADIO FUNCTION |
- CTCSS / DCS Encoding And Decoding
- Non-Standard CTCSS / DCS Setting Freely
- Same Band Repeat on Two Combined Radios
- Caller ID Display
- Voice Scrambler
- Multiple Back Light Color Selectable
- Scan Channel Adding / Deleting
- Grouping Channel Scanning
- Superheterodyne Receiver Type
- Stun / Kill Function
- Single Audio Pulse Frequency
- Group Calls , All Calls , Selective Calls
- Priority Channel Scanning
- APO Power Management
- Wide / Narrow Bandwidth Selectable
- Voice Guide
- Automatic Temperature Detection
- Multiple Scanning Ways
- Remote Control Setting
- Multiple Setting For Cooling Fan
- DTMF Encode And Decode
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
66-88 MHz |
| Step |
5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz |
| Channel Number |
999 |
| Work Mode |
F2D / F3E |
| Operating Temperature |
-20℃～+60℃ |
| Voltage |
13.8VDC±15% |
| Antenna Impedance |
50Ω |
| Weight |
1438 g |
| Dimension |
140 x 44 x 207 MM |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
transceiver≤3w
hand microphone≤1w |
| Sensitivity |
VHF： 0.25µV （12dB SINAD ） |
| Transmitter |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Signal to Noise Ratio |
≥40dB |
≥36dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
|
| |
Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers |
| |
| STANDARD ACCESSORY |
| |
| MMO-001 |
|
MBO-001 |
|
|
|
| Hand Microphone |
|
Mounting Bracket |
| |
|
|
| PWO-002 |
|
SSO-001 |
|
|
|
| Power Cord |
|
Screw Sets |
| |
|
|
| FUO-001 |
|
|
|
|
|
| Fuse , 15A , 32V |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| SPO-002 |
|
PCO-003 |
|
|
|
| Switching Power , 30A |
|
USB Cable |
| |
|
|
| ANO-015 |
|
ANO-016 |
|
|
|
| Mobile Antenna |
|
Magnetic Mount |
| |
|
|
|
| |
