kg-d98

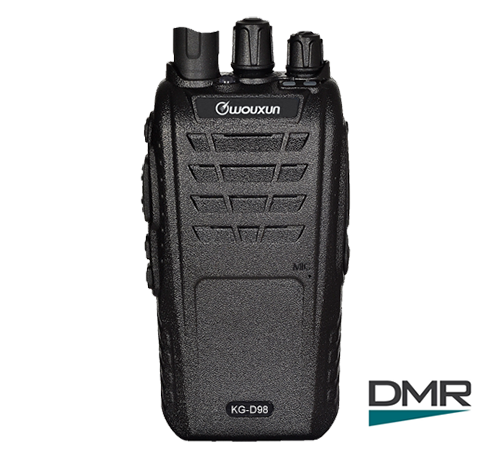

Digital And Analogue Two Way Radio KG-D98

RADIO  FUNCTION


Superior Voice
With The Adoption of The AGC Technology in
Combination With The Application of Narrowband
Codec And Digital Error Correction Technologies,
The KG-D88 Radios Are Capable of Ensuring Your
Voice is Clear And Crisp Even in Noisy Environments
or At The Edge of The Coverage Area

Higher Spectrum Efficiency And High
Channel Capacity

The TDMA Technology Allows Twice The Channels
Based on The Same Spectrum Resource , This
Relieves The Stress of Increasing Shortage in
Spectrum Resource

Secure Communication
Besides The Encryption Inherent to Digital Technology,
The KG-D88 Radios Provide Enhanced Encryption
Capabilities. This Process Includes End-to-End
Encryption And Over-the-air Encryption

  • Digital Encryption AES256 ( NEW )
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-out Alert
  • FM Radio
  • Firmware Upgrade
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Call Alert
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-standard
  • DTMF Encoding and Decoding


TECHNICAL  SPECIFICATION

Intergration
Frequency Range 136-174MHz or 400-480MHz
PMR446
Channel Number 3072
Operating Temperature -20℃~+40℃
Antenna Resistance 50 Ω
Working Voltage 7.4 VDC



Transmitter
FM Modulation 12.5KHz : 11KOF3E ,
25KHz : 16KOF3E
4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE
Adjancent Channel Power ≤-60dB
Band Width Digital=12.5KHz , Analogue=12.5/25.0KHz PMR=12.5KHz
Frequency Stability ±1 PPM
Audio Distortion ≤5%
Vocoder Type AMBE+2TM
Audio Response +1dB~-3dB
Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz@12.5KHz
Output Power UHF(H : 4W , L : 1W)
PMR(0.5W)



Receiver
Analog Receive Sensitivity 0.25µV@12dB SINAD
Digital Receive Sensitivity 0.25µV(BER:5%)
Adjacent Channel
Selectivity
≤60dB@12.5KHz
Audio Response +1dB~-3dB
Audio Distortion ≤5%
Audio Power 1W
Inter Modulation ≥65dB




STANDARD  ACCESSORY

BLO-009   CHA-009
battery

charger
Battery , 2600mAh   Charger

ANO-033   OTH-001
antenna

belt clip
Antenna   Belt Clip

OTH-005
hand strap

Hand Strap
