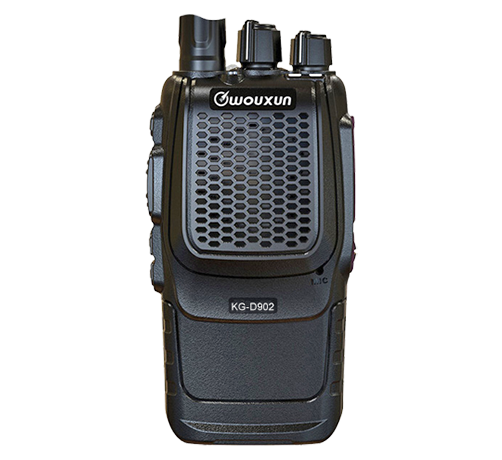

| Digital And Analogue Two Way Radio KG-D902 |
| |
| RADIO FUNCTION |
- Digital Encryption AES256 ( NEW )
- 3072 Channel , 1024 Contacts , 255 Receiving Group
- 250 Areas , 16 Scan List
- Program Key
- Digit Voice Encryption
- Emergency Alarm
- VOX Function
- Priority Channel
- Scan TX Designated Channel
- Low Battery Power Off
- One Touch Relay / Talkaround
- Transmit Time-out Alert
- FM Radio
- Firmware Upgrade
- Radio Program Password
- Power Save Mode
- Tail Elimination
- Lone Worker
- Radio Disable or Enable
- ARTS
- Detection
- Call Alert
- Flashlight
- CTCSS Encoding And Decoding , Support Non-standard
- DTMF Encoding and Decoding
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
136-174MHz or 400-480MHz
PMR446 |
| Channel Number |
3072 |
| Operating Temperature |
-20℃～+40℃ |
| Antenna Resistance |
50 Ω |
| Working Voltage |
7.4 VDC |
| Transmitter |
| FM Modulation |
12.5KHz : 11KOF3E ,
25KHz : 16KOF3E |
| 4FSK Digit Modulation |
12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE |
| Adjancent Channel Power |
≤-60dB |
| Band Width |
Digital=12.5KHz , Analogue=12.5/25.0KHz PMR=12.5KHz |
| Frequency Stability |
±1 PPM |
| Audio Distortion |
≤5% |
| Vocoder Type |
AMBE+2TM |
| Audio Response |
+1dB~-3dB |
| Digital Protocol |
ETSI-TS102 , 361-1 , 361-2 , 361-3 |
| Bit Error Ratio |
≤5% |
| Modulation Limit |
±2.5KHz@12.5KHz |
| Output Power |
UHF(H : 4W , L : 1W)
PMR(0.5W) |
| Receiver |
| Analog Receive Sensitivity |
0.25µV@12dB SINAD |
| Digital Receive Sensitivity |
0.25µV(BER:5%) |
Adjacent Channel
Selectivity |
≤60dB@12.5KHz |
| Audio Response |
+1dB~-3dB |
| Audio Distortion |
≤5% |
| Audio Power |
1W |
| Inter Modulation |
≥65dB |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-006 |
|
CHA-009 |
|
|
|
| Battery , 1700mAh |
|
Charger |
| |
|
|
| ANO-014 |
|
OTH-001 |
|
|
|
| Antenna , 400-470MHz |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| |
