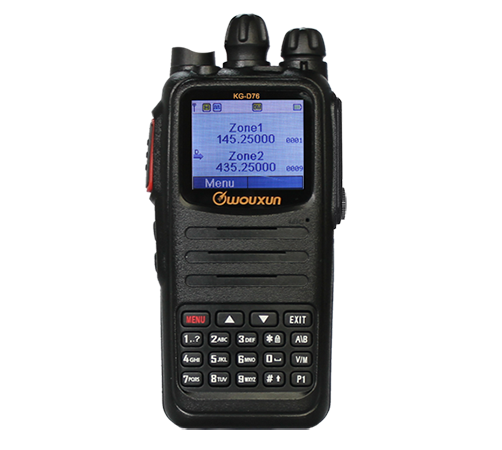

| UV Dual Bands Digital Two Way Radio KG-D76 |
| |
| RADIO FUNCTION |
- Digital Encryption AES256 ( NEW )
- Dual PTT
- Indenpent ID For Each Channel
- 3072 Channels
- 160000 Contacts
- 255 Receiving Groups
- 250 Zones
- 255 Scanning Groups
- Radio ID
- Radio TX Contacts
- Duan Band and Dual Display
- Radio Color Code
- Support Frequency Mode
- Program Key
- Digital Voice Encryption
- Emergency Alarm
- VOX Function
- Priority Channel
- Scan TX Designated Channel
- Low Battery Power Off
- One Touch Access / Talk Around
- Radio Program Password
- Menu Encryption or Menu Hide
- Power Save Mode
- Group Scan
- Tail Elimination
- Text Message
- Radio Disable or Enable
- Lone Work
- ARTS Function
- Flash Light
- Call Alert
- CTCSS Encoding and Decoding , Support Non Standard
- Digital Channel Recording , Continuous Record 8 Hours
- Play Recording File
- Customerized Radio Interface
- DTMF Encoding and Decoding
- Transmit Time-out Alert
- FM Radio
- Fimware Upgradable
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
136-174 / 400-520 MHz |
| Channel Number |
3072 |
| Operating Temperature |
-20℃～+40℃ |
| Antenna Resistance |
50 Ω |
| Working Voltage |
7.4 VDC |
| Transmitter |
| FM Modulation |
12.5KHz : 11KOF3E ,
25KHz : 16KOF3E |
| 4FSK Digit Modulation |
12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data+Voice) : 7K60EXE |
| Adjancent Channel Power |
≤-60dB |
| Frequency Stability |
±1 PPM |
| Audio Distortion |
≤5% |
| Vocoder Type |
AMBE+2TM |
| Audio Response |
+1dB~-3dB |
| Digital Protocol |
ETSI-TS102 , 361-1 , 361-2 , 361-3 |
| Bit Error Ratio |
≤5% |
| Modulation Limit |
±2.5KHz@12.5KHz |
| Output Power |
UHF(H : 4W , L : 1W)
VHF(H : 5W , L : 1W) |
| Receiver |
| Analog Receive Sensitivity |
0.25µV@12dB SINAD |
| Digital Receive Sensitivity |
0.25µV(BER:5%) |
Adjacent Channel
Selectivity |
≤60dB@12.5KHz |
| Audio Response |
+1dB~-3dB |
| Audio Distortion |
≤5% |
| Audio Power |
1W |
| Inter Modulation |
≥65dB |
|
| |
Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers |
| |
| STANDARD ACCESSORY |
| |
| BLO-016 |
|
CHA-025 |
|
|
|
| Battery , 2600mAh |
|
Desktop Charger |
| |
|
|
| CHA-025 |
|
ANO-033 |
|
|
|
| Power Supply Adapter |
|
Antenna |
| |
|
|
| OTH-005 |
|
OTH-001 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
| |
