Conventional digital two-way radio, robust and reliable, the KG-D58 portable digital radio offers a simple
communication solution, ideal for users
operating in manufacturing, facilities
management or education environments. |

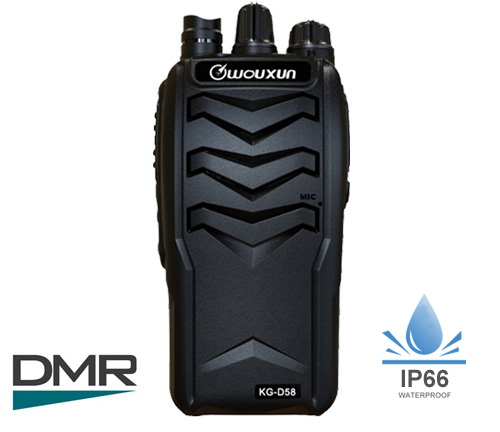

| Digital And Analogue Two Way Radio KG-D58 |
| |
| MAIN FUNCTION |
| |
|
Superior Voice
With The Adoption of The AGC Technology in
Combination With The Application of Narrowband
Codec And Digital Error Correction Technologies,
The KG-D58 Radios Are Capable of Ensuring Your
Voice is Clear And Crisp Even in Noisy Environments
or At The Edge of The Coverage Area
Higher Spectrum Efficiency And High
Channel Capacity
The TDMA Technology Allows Twice The Channels
Based on The Same Spectrum Resource , This
Relieves The Stress of Increasing Shortage in
Spectrum Resource
Secure Communication
Besides The Encryption Inherent to Digital Technology,
The KG-D58 Radios Provide Enhanced Encryption
Capabilities. This Process Includes End-to-End
Encryption And
Over-the-air Encryption
|
|
- 3072 Channel , 1024 Contacts , 255 Receiving Group
- 250 Areas , 16 Scan List
- Program Key
- Digit Voice Encryption
- Emergency Alarm
- VOX Function
- Priority Channel
- Scan TX Designated Channel
- Low Battery Power Off
- One Touch Relay / Talkaround
- Transmit Time-out Alert
- FM Radio
- Firmware Upgrade
- Radio Program Password
- Power Save Mode
- Tail Elimination
- Lone Worker
- Radio Disable or Enable
- ARTS
- Detection
- Waterproof IP66
- Call Alert
- Flashlight
- CTCSS Encoding And Decoding , Support Non-standard
- DTMF Encoding and Decoding
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
UHF=400-480MHz , PMR=446MHz |
| Channel Number |
3072 |
| Operating Temperature |
-20℃～+40℃ |
| Antenna Resistance |
50Ω |
| Working Voltage |
7.4 VDC |
| Weight |
300 g |
| Size |
64 x 41 x 130 (mm) |
| Transmitter |
| FM Modulation |
12.5KHz : 11KOF3E |
| 4FSK Digit Modulation |
12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data) : 7K60EXE |
| Adjancent Channel Power |
≤-60dB |
| Band Width |
Digital=12.5KHz , Analogue=12.5/25.0KHz PMR=12.5KHz |
| Frequency Stability |
±1 PPM |
| Audio Distortion |
≤5% |
| Vocoder Type |
AMBE+2TM |
| Audio Response |
+1dB~-3dB |
| Digital Protocol |
ETSI-TS102 , 361-1 , 361-2 , 361-3 |
| Bit Error Ratio |
≤5% |
| Modulation Limit |
±2.5KHz@12.5KHz |
| Output Power |
UHF(H : 4W , L : 1W)
PMR(0.5W) |
| Receiver |
| Analog Receive Sensitivity |
0.25µV@12dB SINAD |
| Digital Receive Sensitivity |
0.25µV(BER:5%) |
Adjacent Channel
Selectivity |
≤60dB@12.5KHz |
| Audio Response |
+1dB~-3dB |
| Audio Distortion |
≤5% |
| Audio Power |
1W |
| Inter Modulation |
≥65dB |
|
| |
Please Click The Icon to Select The Items You Want
And Send The Inquiry to WOUXUN For Offers |
| |
| STANDARD ACCESSORY |
| |
| BLO-016 |
|
CHA-012 |
|
|
|
| Battery , 2600mAh |
|
Desktop Charger |
| |
|
|
| ANO-012 |
|
CHA-012 |
|
|
|
| Antenna |
|
Power Supply Adaptpr |
| |
|
|
| OTH-005 |
|
OTH-001 |
|
|
|
| Hand Strap |
|
Belt Clip |
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-011 |
|
CHA-027 |
|
|
|
| Battery , 3200mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-008 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-002 |
|
ELO-005 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-012 |
|
ANO-038 |
|
|
|
| Antenna |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
|
| |
