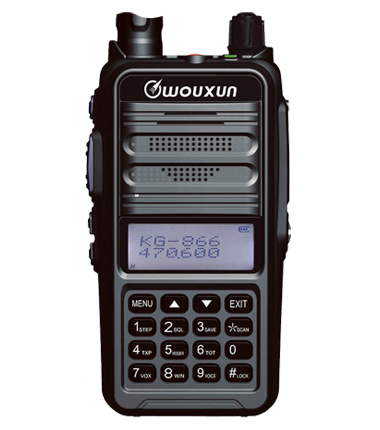

| Single Band Portable Two Way Radio KG-866 |
| |
| MAIN FUNCTION |
- CTCSS / DCS Scaning
- Digital FM Radio (76-108MHz)
- VOX Transmission
- CTCSS / DCS
- Bandwidth Selection (25KHz / 12.5KHz)
- 7W / 1W Power Adjustable
- 400 Memory Channels
- Scrambler
- Long Battery Life
- IP55 Dust / Water Proof
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
Suitable For Different Countries |
| Frequency Step |
5/6.25/10/12.5/25/50/100 KHz |
| Channel Number |
400 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+40℃ |
| Voltage |
7.4 VDC |
| Antenna Impedance |
50Ω |
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Max Frequency Deviation |
±5KHz |
±2.5KHz |
| Frequency Stability |
±2.5PPM |
| Audio Distortion |
≤5% |
| Output Power |
7W / 1W |
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
1~-3dB(0.3~3KHz) |
1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥45dB |
| Audio Distortion |
≤5% |
| Audio Power |
≤500mW |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-009 |
|
CHA-029 |
|
|
|
| Battery , 2600mAh |
|
Desktop Charger |
| |
|
|
| ANO-040 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-009 |
|
CHA-010 |
|
|
|
| Battery , 2600mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-003 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-011 |
|
AAO-002 |
|
|
|
| Antenna |
|
BNC Antenna Adaptor |
| |
|
|
| AAO-001 |
|
|
|
|
|
| SL16 Antenna Adaptor |
|
|
| |
|
|
|
| |
