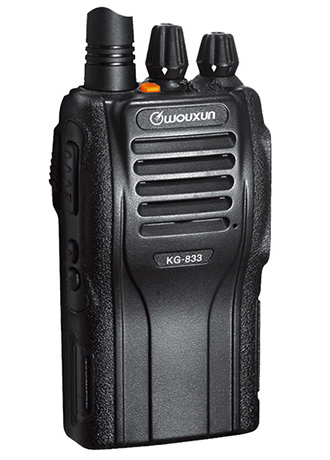

| Two Way Radio KG-833 |
| |
| MAIN FUNCTION |
- 16 memory channels
- 8 groups scrambler (Optional)
- DTMF Encoding and Decoding Function
- High/Low power can changeable by top key
- 105 groups D.C.S/50 groups CTCSS
- DCS/CTCSS of RX and TX can be set respectively
- VOX Transmission
- Busy channel lockout
- Distant alarm
- Multi scan mode (TO/CO/SE)
- Bandwidth Selection (25KHz/12.5KHz)
- Inspection, monitor, stun, kill and emergency alarm
- Calling ring and ring overtime auto answer
- Multi silent mode (QT/QTADT/QTXDT)
- Superheterodyne Receiver Type
|
| |
TECHNICAL SPECIFICATION
| Intergration |
| Frequency Range |
VHF:
66-88/136-174/245-246MHz
UHF:
300-350 / 350-390/
400-470 / 450-520MHz |
| Channel Capacity |
16 |
| Channel Spacing |
25KHz/12.5KHz |
| Maximum Deviation |
±5KHz to 25KHz
±2.5KHz to 12.5KHz |
| Frequency Stability |
±2.0ppm |
| Operating Voltage |
7.4 VDC |
| Operating Temperature |
-30℃～+60℃ |
| Standby Current |
50mA |
| Antenna Impedance |
50Ω |
| Dimension |
103×62×39 MM |
| Weight |
242g |
| Transmitter |
| RF Power Output |
VHF:5W/1W UHF:4W/1W PMR446:0.5W-4W |
| Modulation |
16KфF3E/11KфF3E |
| Spurious and Harmonious |
-36dBm＜1GHz -30dBm＞1GHz |
| FM Noise |
40dB |
| Adjacent Channel Power |
70dB/60dB |
| Audio Distortion |
≤5﹪ |
| Receiver |
| Sensitivity(12dB SINAD) |
0.25μV |
| Selectivity |
60dB |
| Intermodulation |
60dB |
| Spurious Response Rejection |
65dB/70dB |
| Audio Power Output |
500mW |
| Audio Distortion |
≤3﹪(0.5W) |
|
| |
| STANDARD ACCESSORY |
| |
| BLO-004 |
|
CHA-001 |
|
|
|
| Battery , 1700mAh |
|
Charger |
| |
|
|
| ANO-003 |
|
OTH-003 |
|
|
|
| Antenna |
|
Belt Clip |
| |
|
|
| OTH-005 |
|
|
|
|
|
| Hand Strap |
|
|
| |
|
|
|
| |
| OPTIONAL ACCESSORY |
| |
| BLO-007 |
|
CHA-007 |
|
|
|
| Battery , 2600mAh |
|
Six-way Charger |
| |
|
|
| LCO-003 |
|
PCO-009 |
|
|
|
| Leather Case |
|
USB Cable |
| |
|
|
| HEO-001 |
|
HEO-002 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| HEO-003 |
|
HEO-005 |
|
|
|
| Headset |
|
Air Conduit Earphone |
| |
|
|
| SMO-001 |
|
SMO-002 |
|
|
|
| Speaker |
|
Speaker |
| |
|
|
| CCO-001 |
|
ELO-001 |
|
|
|
| Car Charger |
|
Eliminator |
| |
|
|
| ANO-041 |
|
ANO-006 |
|
|
|
| Antenna , 38CM |
|
Antenna |
| |
|
|
| AAO-001 |
|
AAO-002 |
|
|
|
| SL16 Antenna Adaptor |
|
BNC Antenna Adaptor |
| |
|
|
| BAO-001 |
|
|
|
|
|
| "AA" Battery Case |
|
|
| |
|
|
|
| |
